Cryolipolysis devices
Technology / Applicators / Studies / Technical DataHigh quality standards

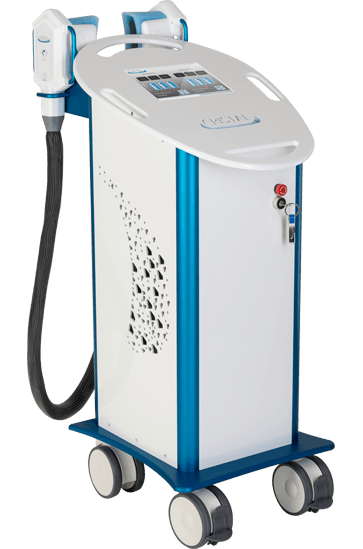

The CRISTAL® cryolipolysis device was developed entirely in France and is manufactured according to the highest European standards and medical technology guidelines. Deleo is certified to ISO 13485: 2003 & EN ISO 13485: 2012. This ensures tranparency throughout the process, from development through production to activation. Technical support services and maintain the equipment regularly to ensure the highest level of functionality of the equipment.
Double-effective cooling system
The CRISTAL® cryolipolysis device employs a dual-powered cooling system: the combination of a R134a gas cooler and a fan/radiator cooling ensure a quick descend to the pre-set temperature and maintain a stable cold temperature throughout the entire treatment.
The CRISTAL® cryolipolysis system uses a dual cooling system: the combination of a R134a gas cooler and a radiator cooling ensure a quick descend to the set temperature and maintain a stable cold temperature during the entire treatment. This medical technology innovation guarantees high treatment comfort for patients.
Extremely safe
The CRISTAL® has the most advanced safety features built-in to ensure maximum patient safety at all times:
- 15 probes to control parameters
- Automated and manual patient shutdown in case of emergency
- Smartphone (iPhone & Android) app to monitor the treatment parameters remotely
APPLICATORS

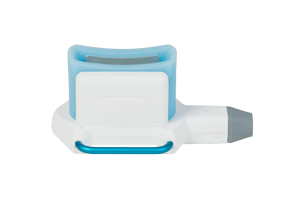

Emerald
Size: 130 x 38 x 72 mm
The Emerald is the ideal handpiece for the treatment of small rolls of fat, for instance below the arms and behind the knees. Available with curved or straight edges.

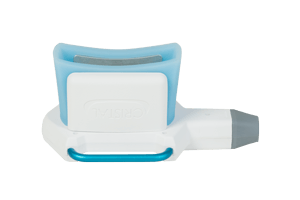

Sapphire
Size: 155 x 35 x 72 mm
The Sapphire is the most versatile handpiece and can be ideally used on many parts of the body, including the abdomen, bra-line and the “love handles”.

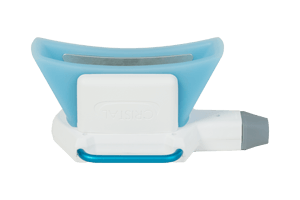

Ruby
Size: 200 x 38 x 74 mm
The Ruby handpiece was developed to treat large rolls of fat, it optimally fits on the abdominal area.

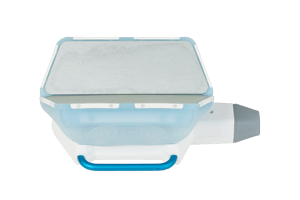

Amethyst
Size: 209 x 110 x 51 mm
The Amethyst handpiece has been specifically designed for the inner and outer thighs. It is completely versatile and deformable to adapt to all morphologies. The Amethyst is a Deleo innovation that was patented in the year 2015.

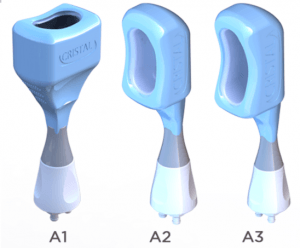

Agate
Sizes:
A1 – 45 x 25 x 32.5 mm – 440 g
A2 – 70 x 30 x 32.5 mm – 555 g
A3 – 90 x 30 x 45 mm – 760 g
The Agate applicator has been patented by Deleo in 2016 and is ideally suited to treat the double chin. It comes in a set with three different sizes and fits therefore to any of your client’s morphologies. It is also perfect to treat arms, knees, the bra fold and any other smaller treatment zones.
Technical Specifications
| Cooling system | Dual cooling with R134a gas cooling unit & radiator/fan cooling 4 Peltier cooling elements Water / air |
| Cooling temperature | 0°C / -9°C on skin surface |
| Applicators | 2 outputs (useable at the same time) Emerald Size: 130 x 38 x 72 mm Sapphire Size: 155 x 35 x 72 mm Ruby Size: 200 x 38 x 74 mm Amethyst Size: 209 x 110 x 51 mm |
| Vacuum pressure system | 0-68 kPa 4 adjustable vacuum pressure levels Massage mode |
| Memory | 24 pre-recorded protocols memory for > 2,000 own protocols |
| Output power | 1200 W |
| Input power | AC 200 – 220 V | 15A | 50/60 Hz |
| Size of the device | 1 000 x 500 x 400 mm |
| Weight | 85 kg |
